Products

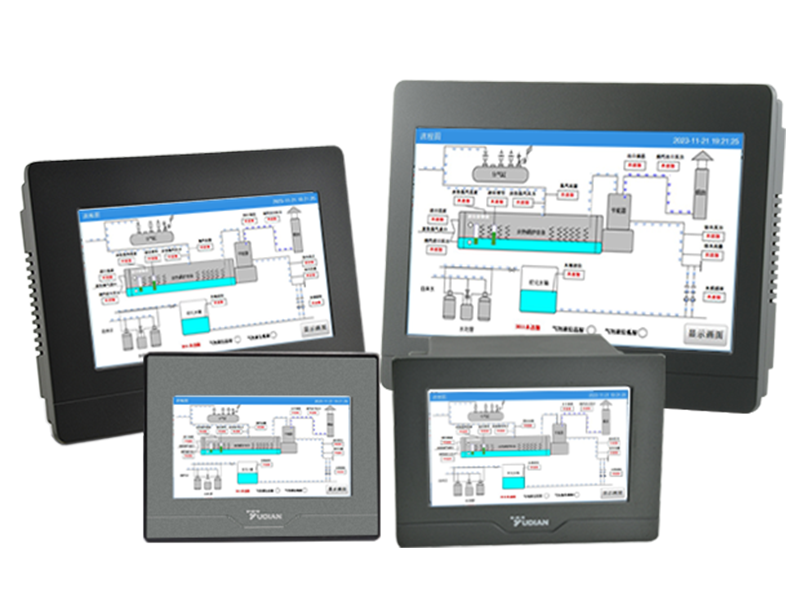

AI-32XX Series HMI Touch Screen

Available in four sizes:

4.3-inch: 130mm (L) x 104.5mm (W)

5-inch: 145mm (L) x 105mm (W)

7-inch: 203mm (L) x 150mm (W)

9-inch: 231mm (L) x 170mm (W)

The AI-3270S/3270W/3270Y/3290S/3290W/3290Y multifunctional configurable true-color HMI touch screens are built around a low-power consumption CPU, inheriting Yudian’s classic design philosophy of low power consumption and high reliability. Equipped with powerful and flexible Yudian HMI configuration software, these screens not only support connection to Yudian’s extensive range of AI series instruments but also are compatible with mainstream smart instruments, PLCs, inverters, and other devices available on the market. They are widely applicable across various industrial, scientific, and civil field environments.


1. The widescreen display features an 800×480 resolution, providing clear images and delicate picture quality for a comfortable visual experience for operators.

2. Using a long-life LED backlight, the device features low power consumption, extended touchscreen lifespan, high screen brightness, uniform color, and enhanced display performance.

3. Multiple communication modes: In addition to 2 serial ports (RS232 and RS485) and 2 USB ports, the AI-3270W/3290W is also equipped with a 10/100M adaptive Ethernet interface.

4. The USB interface allows easy saving of recorded data to a USB drive, supports mouse operation of the touchscreen, and can even connect to devices like barcode scanners for data input.

5. After connecting to the network via the Ethernet port, the AI-3270W/3290W allows multiple computers within the same local area network to simultaneously access and operate the touchscreen through a web browser on their computers.

6. Equipped with Yudian HMI configuration software, the configuration development environment is a visual, “foolproof” integrated platform that makes configuration straightforward and convenient. The system comes with a rich library of objects and graphics, while also allowing custom graphics creation. It supports importing images in formats such as BMP, JPG, and GIF, enabling users to freely design various industrial interfaces. Additionally, the system offers a variety of animation effects, such as blinking, filling, and movement, making the interface vivid and intuitive.

7. Powerful data processing capabilities enable saving and viewing of various data types, as well as generating reports and multiple trend charts.

8. Multi-level security settings ensure the safe operation of the configuration project through the combined use of user management and secure zones.

9. Equipped with P2P cloud functionality (no public IP is required to penetrate intranet surveillance), allowing remote monitoring and operation via mobile devices such as smartphones and tablets from different locations. (Only available on 3270Y/3290Y)

File Name Number Associated Model Version Preview Download
AIP7/AIP9/AI-3170/3190 Series Instruments User Manual S087-04 3170/3190
AIP5/AI-3150 Series Instruments User Manual S100-03 3150
Single Channel AIP Series Paperless Recorder and True Color HMITouch Screen User Guide S191-03 3150S/3150W/3150Y/3170S/3170W/3170Y/3190S/ 3190W/3190Y
AI-3700/3170/3900/3190 Series Instruments User's Manual S087-03 3700/3170/3900/3190
AI-3500/3150 Series Instruments User Manual S100-02 3500/ 3150
